WAN-H60-V012T

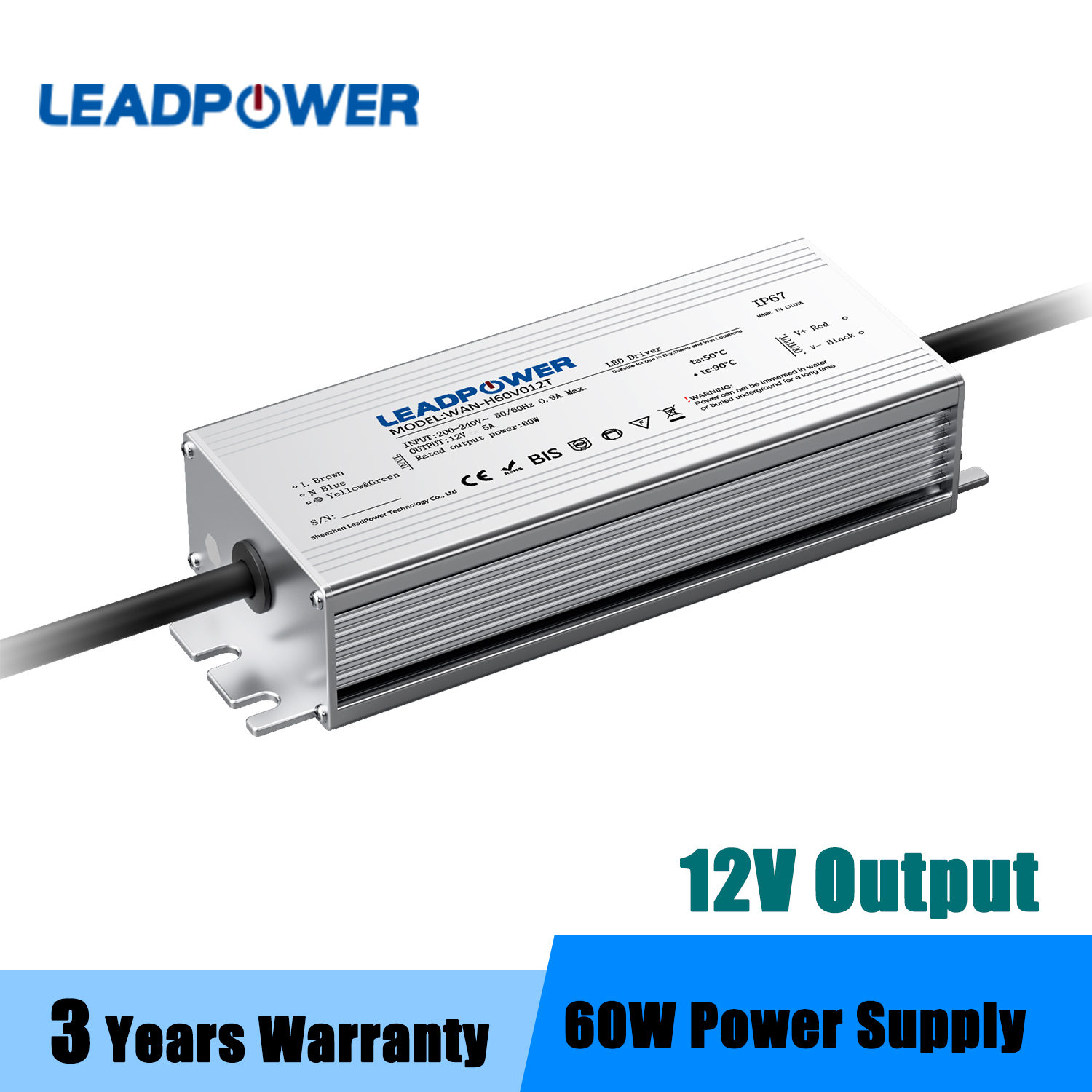

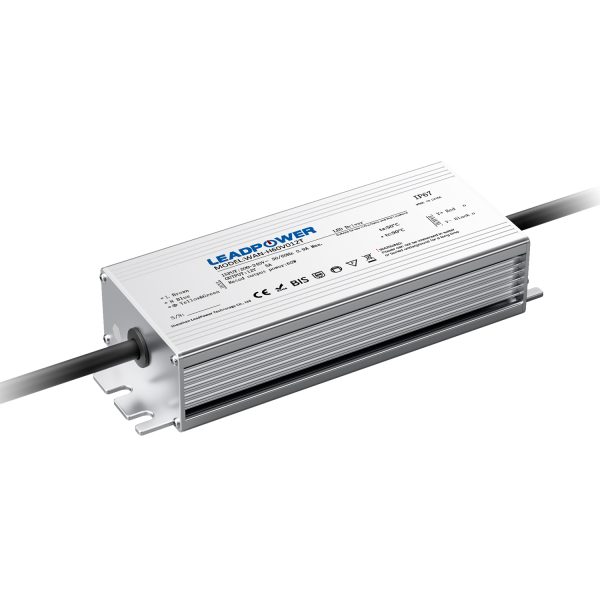

WAN-H60-V012T - 图片 2

WAN-H60-V012T

  1. Input voltage range 176~264Vac;
  2. High efficiency, low temperature rise, high reliability;
  3. Built-in EMI filter, lower ripple & low noise;
  4. Protections: over current protection, over load protection,
  5. short circuit protection.
分类：
1 Input
No. Item Technical Requirements Unit Note
1.1 Rated Input Voltage 200~240 Vac
1.2 Input Voltage Range 176～264 Vac Refer to derating curve
1.3 Rated Frequency 47～63(Typ. 50/60) Hz
1.4 Max. Input Current 0.8 A Vin=190Vac, rated load
1.5 Inrush Current ≤50 A 240Vac input, rated load, 25℃
2 Output
No. Item Technical Requirements Unit Note
2.1 Rated output voltage 12 Vdc
2.2 Rated output current 5 A
2.3 Max Output power 60 W Refer to derating curve
2.4 Efficiency ≥85% – 230Vac input, rated load, 25℃
2.5 Line regulation ±1%
2.6 Load regulation ±2%
2.7 Voltage tolerance ±2%
2.8 Ripple & Noise ≤200 mVp-p 25℃，230VInput, Rated Load, Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2.9 Dynamic Response Overshoot ≤5 % 25%～50%～25 and 50%～75%～50% load dynamic, the half-wave period is 4mS, the current change slope is 0.1A/uS
2.10 Turn-on Delay Time ≤3 s 200~240Vac input, rated load
2.11 Shutdown hold time – ms Rated input voltage, rated load
2.12 Turn-on/off Overshoot ≤±10%
3 Protection
No. Item Technical Requirements Unit Note
3.1 Current limiting protection 6～8 A Hiccup model, recovers automatically after fault condition is removed
3.2 Short Circuit Protection Long time short-circuit protection without damage, recovers automatically after fault condition is removed.
Power

60W
Input

176-264Vac
Output

DC12/24V
